  • ETT985_004_iso

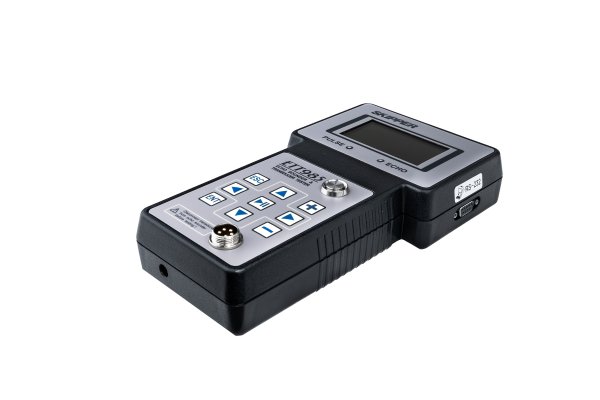

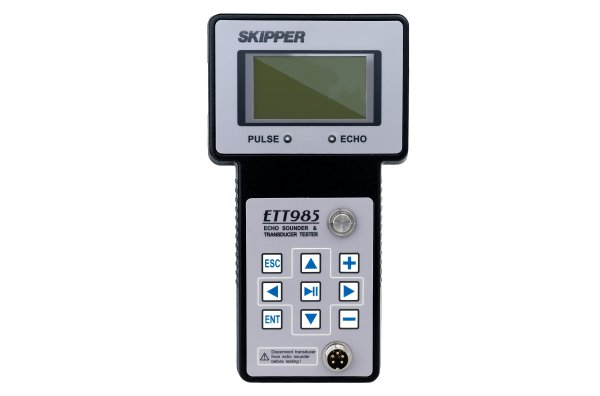

SKIPPER ETT985 tester for echo sounders

Part Number: ETT985-SASW

SKIPPER ETT985 is a simple to use, reliable and accurate tester for most echo sounders. Pre-programmed with factory tests for transducers, echo sounders and NMEA ports. This unit can be used in a stand-alone mode, or using a connection to a PC to give accurate results. It may even print/save a status report. The ETT985 eliminates uncertainty of whether a failure is in the transducer or in the echo sounder.

Read product description
Where to buy

Features

  • Transducer tester
  • Echo Sounder tester
  • NMEA tester
  • Built-in rechargeable battery
Product:Transducer tester
Part number:
ETT985-SASW
To be used with:
  • All SKIPPER echo sounders
  • All SKIPPER transducers
  • External echo sounders
  • External transducers
Features:
  • Tester for transducer frequencies from 10 kHz to 1 MHz
  • Impedance, resistance and phase
  • Detection of resonant point and impedance at resonance
  • Pre-programmed integrity tests for SKIPPER transducers (and others)
  • Graph of impedance, conductance, phase and susceptance
  • Detection of resonance, anti-resonance, bandwidth and factory limit check Save to .xls format and/or print out for service reports
  • Add your own transducer checks and limits (saved in tester for later use)
Simulator:
  • Detect and measure pulses, frequency, strength, Vpp, width and period
  • Generate return pulses with fixed or tracking format, at depth up to 999.9 m
  • Simulate fish in the water column
  • Add your own echo sounder values and checks
  • Ceck results against factory settings or preset default values
NMEA tester:
  • Monitor NMEA lines, loop back signals from devices, send standard formats for GPS, gyro, echo sounders, speed logs etc.
  • Use the unit as a NMEA to RS232 converter or to USB with included converter
  • Insert your own NMEA parameters (can be saved)
