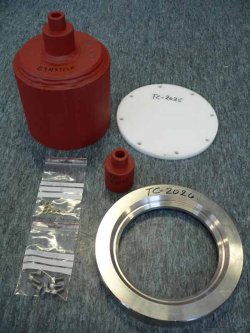

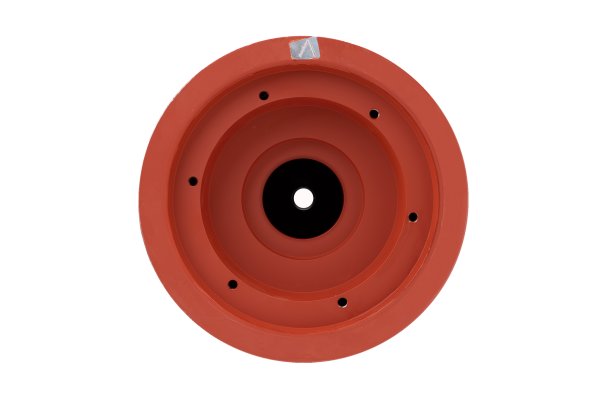

SKIPPER ETNST standard steel tank

Part Number: ETNST

The ETNST is a standard steel tank. It is designed for SKIPPER transducers, but could also be used for other sensors with special adaptors.

Features

Product:	Standard steel tank
Part number:	ETNST
Opening diameter:	100 mm
Hull type:	All steel hulls
Tank material:	Steel
Flange material:	N/A
Approval with part number:	ETNST Standard with DNV approval ETNST-ABS With ABS approval ETNST-BV With BV approval ETNST-LR With LR approval ETNST-RINA With RINA approval
Mandatory accessories:	A-PACKING Special packing materials
Weight:	35 kgs
Designed for:	ETN050T 50 kHz transducer with 25 m cable ETN050XT 50 kHz transducer with 40 m cable ETN200T 200 kHz transducer with 25 m cable ETN200XT 200 kHz transducer with 40 m cable ETN200ST 200 kHz transducer with 25 m cable ETN200SXT 200 kHz transducer with 40 m cable ETS50200T-SA 50/200 kHz dual transducer with 25 m cable ETS50200XT-SA 50/200 kHz dual transducer with 50 m cable
Service:	Available in most major harbours, world-wide through extensive dealer network

Documentation type

Date

Type

Name

Size

Download

10.07.26

Data sheet

Datasheet_ETNST Tank_2020-12-07

457 KB

29.06.26

Manual

Manual DM-BETNST-SA StandardTank 2017-12-20

857 KB

20.08.26

Technical

Data bulletin_SDB_TANK_01 Tool for packing nipple 20100608

555 KB

20.08.26

Technical

Data bulletin_Tanks - Illustrated parts list 20100114

1313 KB
