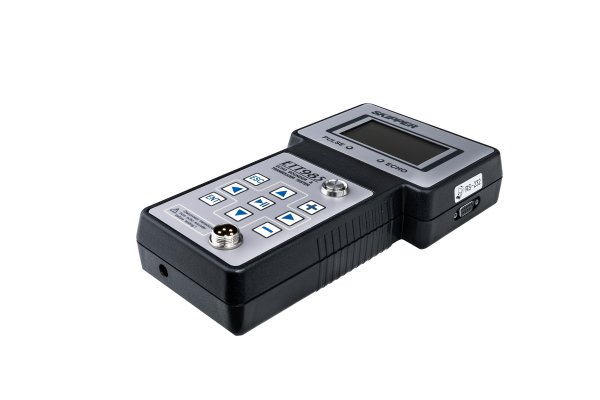

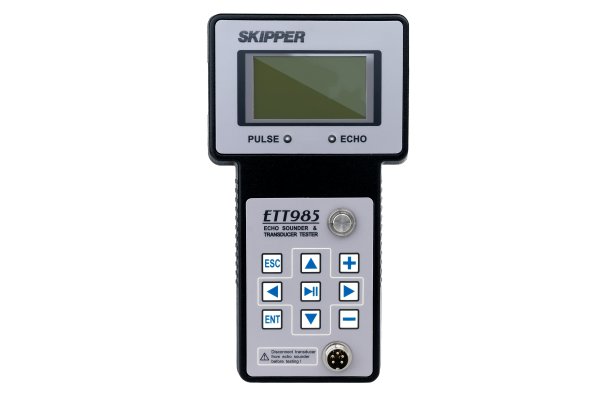

SKIPPER ETT985 tester for echo sounders

Part Number: ETT985-SASW

SKIPPER ETT985 is a simple to use, reliable and accurate tester for most echo sounders. Pre-programmed with factory tests for transducers, echo sounders and NMEA ports. This unit can be used in a stand-alone mode, or using a connection to a PC to give accurate results. It may even print/save a status report. The ETT985 eliminates uncertainty of whether a failure is in the transducer or in the echo sounder.

Read product description

Where to buy

Features

Transducer tester
Echo Sounder tester
NMEA tester
Built-in rechargeable battery

Product:	Transducer tester
Part number:	ETT985-SASW
To be used with:	All SKIPPER echo sounders All SKIPPER transducers External echo sounders External transducers
Features:	Tester for transducer frequencies from 10 kHz to 1 MHz Impedance, resistance and phase Detection of resonant point and impedance at resonance Pre-programmed integrity tests for SKIPPER transducers (and others) Graph of impedance, conductance, phase and susceptance Detection of resonance, anti-resonance, bandwidth and factory limit check Save to .xls format and/or print out for service reports Add your own transducer checks and limits (saved in tester for later use)
Simulator:	Detect and measure pulses, frequency, strength, Vpp, width and period Generate return pulses with fixed or tracking format, at depth up to 999.9 m Simulate fish in the water column Add your own echo sounder values and checks Ceck results against factory settings or preset default values
NMEA tester:	Monitor NMEA lines, loop back signals from devices, send standard formats for GPS, gyro, echo sounders, speed logs etc. Use the unit as a NMEA to RS232 converter or to USB with included converter Insert your own NMEA parameters (can be saved)

Documentation type

Date

Type

Name

Size

Download

09.07.26

Manual

Manual DM-T001-1424A ETT985 Echo sounder and transducer tester (2017-02-16)

1431 KB

31.08.26

Marketing material

Product brochure ETT985 (24012013)

798 KB

31.08.26

Marketing material

Product brochure ETT985 Navigation Echo Sounder (25012013)

868 KB

31.08.26

Technical

Data bulletin_SDB_ETT985_01 Using the ETT on SKIPPER products

2094 KB

31.08.26

Technical

Data bulletin_SDB_ETT985_02 Preset transducer tests failing fw 1.01

163 KB

31.08.26

Technical

Data bulletin_SDB_ETT985_03 Programming the tables of the ETT985 and software (1)

1663 KB

Software and certificates will soon be available for download in Jotron Product Passport. Until then, you can download them here: Certificates, Software.
