SKIPPER multirepeater
Part Number: CD401MR-SC

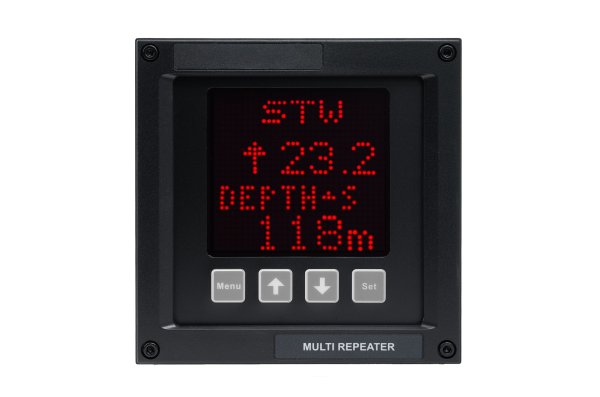

The SKIPPER CD401MR is a remote multirepeater for NMEA0183 signals. It is designed for use with SKIPPER products together with products from other manufacturers, when these use NMEA 0183 output.
Features
- Compact multirepeater
- Depth below surface, keel and transducer
- Speed over ground and through water
- Distance, total/trip for both ground and water
- Heading, true, magnetic and relative
- Rotation, rate of turn and direction
- Wind speed and direction (true, magnetic and relative)
- Temperature in water and air
- Drive, RPM, propeller pitch and rudder position
- Clock UTC, local time and expected time of arrival
- Current, direction and speed (Only available in CD401MR-SB version)
Part number | CD401MR-SC |
Power supply: | DC: 18-32 V |
| Power consumption: | Up to 4 lines with DOT LED |
| Display output: |
|

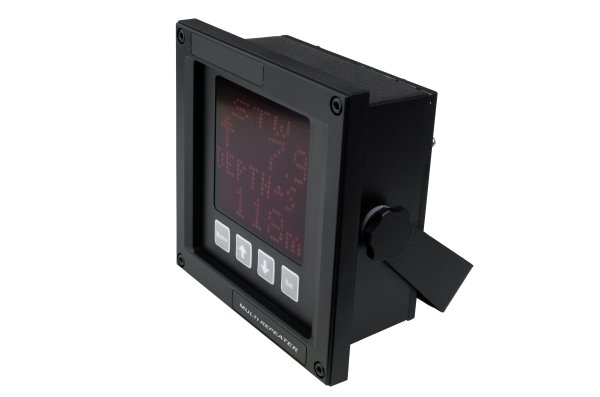

| Mounting dimensions: | 124x124 mm. bracket or panel mounting. Brackets included. |
| Front plate: | 144x144 mm to DIN standard |
| Depth: | 59 mm |
| Weight: | 1 kgs |
| IP rating: | 56 |
| Inputs: |
|
Classifications: |
|
Service: | Available in most major harbours, world-wide through extensive dealer network |
Documentation type
Date
Type
Name
Size
Download
02.07.26
--
Broschure Multirepeater CD401MR-SB_30072014
1594 KB
10.07.26
--
CD401MR-XX Approval tests - E07412-00- Customer summary
1665 KB
08.07.26
Manual
Manual (OpIn) DM-R005-SB-2526 Compact Multi Repeater MR sw1.2X (2025_07_03)
1100 KB
08.07.26
Manual
Manual (OpIn) DM-R006-SC-2526 Compact Multi Repeater MR sw1.6x (2025_07_03) web
1184 KB
Software and certificates will soon be available for download in Jotron Product Passport. Until then, you can download them here: Certificates, Software.
