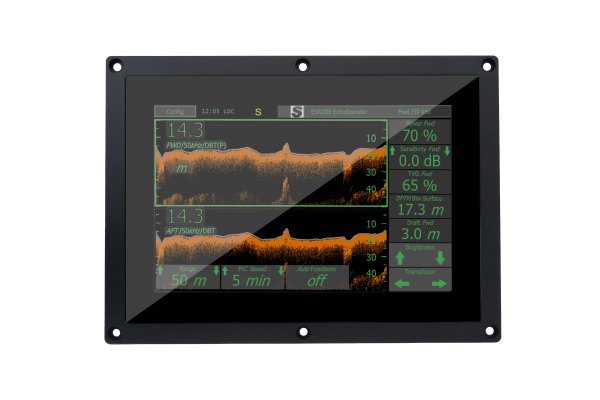

  • CU-M101-SA_10" touchscreen for maritime navigation

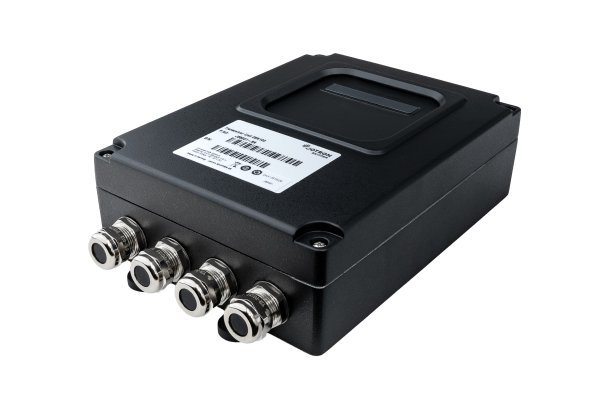

  • JB50E1-SA Electronic unit for maritime navigation systems

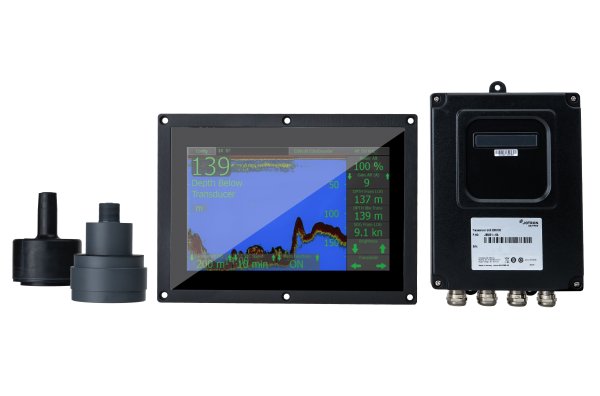

SKIPPER ESN100 IMO wheelmarked echo sounder

Part Number: ESN100

The SKIPPER The echo sounder graphics are continuously shown on the screen along with complete navigational details. Most of the functions are automatic.

Read product description
Where to buy

Features

  • IMO wheelmarked with MED-B
  • Navigation echo sounder
  • Single frequency - 50 or 200 kHz
  • Colour 9" touch screen
  • Auto Gain
  • Auto TVG
  • Auto range
  • Auto power
  • CCS available on request
Echo sounderESN100
Functions:
  • Auto/Manual TVG
  • Auto/Manual gain
  • Auto/Manual power
  • Auto/Manual range
  • Transducer positioning
  • Internal sounder for alarm/button press
Power supply:
  •
  • DC: 10-32 V (Control unit)
  • DC: 21-36 V (Transceiver unit)
Power consumption: Display unit: Nominal 6W
Electronic unit: 20W
Display:9" Touch Display
Mounting dimensions:

  • 224.5 mm wide x 140 mm high (Cut-out)
  • 242 mm wide x 158 mm high (Outside dimensions)
Memory:


24 hours history, external logging feature over network

Printer:Epson LQ-350 Review: service software via LAN. Extended internal logging, by USB or SD
Ranges:
 		Selectable from 0-1000 m

Measuring accuracy:


Error less than 1 %

Frequencies:

  • 50 and 200 kHz selectable
  • Dual frequency (50/200 kHz) transducer may be used, but only one frequency may be used
Output power:
 		Approx. 700 W

Alarms:
 		Follows IEC standards (ALF and ALR)
Calendar/clock:
 		From GPS input

Data output:

  • 1xNMEA0183 (IEC61162-1)
  • DPT, PSKDPT, DBS, DBK, ALR and ALF
Inputs:

  • 2xNMEA0183(IEC61162-1)
  • Accepting signals from GPS, gyro, alarm and draft sensor
Language:
 		English
Options:

  • Remote depth indicators
  • 50 kHz transducer
  • 200 kHz transducer
  • Dual 50/200 kHz transducer
  • Retrofit plate for GDS101/GDS102
Classification:

  • IMO wheelmarked
  • MED-B
  • CCS
Service:
 		Available in most major harbours, world-wide through extensive dealer network
