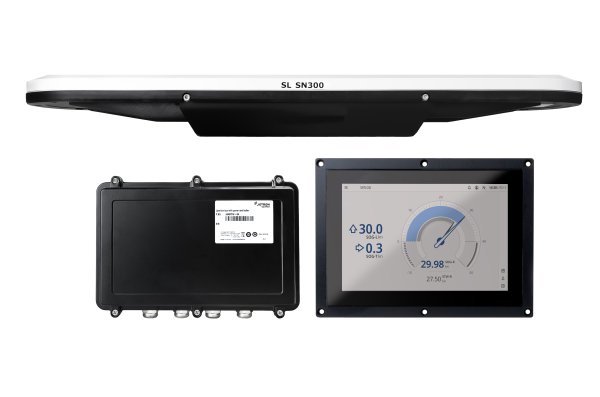

SKIPPER SATLOG SL1200 three axis speed log

Part Number: SL1200

OBSOLETE, will be replaced with new SATLOG SL1300 Q1-2027

The SKIPPER SATLOG SL1200 is a three axis speed log. It is providing longitudinal and fore/aft transversal ship speed over ground (SOG). The SKIPPER SATLOG SL1200 provides accurate navigation parameters measured as they happen, and presented in a logical, user friendly way.

Read product description

Where to buy

Features

IMO Wheelmarked with MED-B
Speed over ground (SOG) in three axis (Docking mode)
NMEA 0183 output
GPS and Glonas speed (SOG)
Last time buy; 31.03.2026
Last time shipment; 31.05.2026
Last time installation onboard is 01.06.2026
CCS available on request

Speed log:	SL1200
Number of axis:	3
Speed range longitudinal:	+/- 99.9 knots
Speed range transversal:	+/- 99.9 knots
Aft transversal speed	yes
Speed over ground from:	0 meter
Temperature accuracy error:	N/A
Power supply:	AC:115-230 V 50/60 Hz DC: 20-32 V
Power consumption:	Display 5W Elecronic unit 10W
Display:	Multi - Panel PC 9" touch display, resolution 800x480
Mounting dimensions display:	Touch display: 224.5 mm wide x 140 mm high Antenna: 100 mm height, 180 mm width and 790 mm long
IP rating:	Display: 2x Antenna: 66
Accuracy:	<0.2 knots or 2% whatever is greater
Weight:	1.2 kgs for Graphic display 3 kgs for antenna 2 kgs for electronic unit
Standard cable length:	Not included for the antenna. Needed cable is 4 TSP (Twisted, shielded pairs) minimum 0.5 mm2. Max length 100 m.
Mounting options:	Antenna only
Speed alarms:	High and low speed limits Power failure Sensor failure
Outputs:	1xNMEA 0183 1xLAN (IEC61192-450)
Inputs:	2xNMEA 0183 (IEC61192-1) 1xLAN (IEC61192-1)
NMEA outputs:	VBW: Dual ground speed Distance: VLW VTG: Actual course and speed relative to the ground DDC: Dimming command output GPS: Gyro and status HDT: Actual vessel heading in degrees. ROT: Rate of turn and direction of turn THS: Actual vessel heading in degrees GSA: Satellite DOP and active satellites GSV: Number of satellites in view, satellite ID and evaluation SNR: Position and time signals GLL: Longitude and latitude of vessel position, time of position fix and status GGA: Time, position and fix related data STWL: Speed Through Water Longitudinal. If a SKIPPER DL2, DL21, DL850, EML224 are connected to the system via NMEA or LAN, the system can display both speeds, and also calulate water current based on the the SOG and STW values STWT: Speed Through Water from an inputted signal Note: This system is a speed log and cannot be used as primary source of other types of information. Position, course over ground and heading is only to be used as secondary sources
IP rating	IP 20 Control unit IP 20 Electronic unit IP 66 Antenna unit
Classification:	IMO Wheelmarked
Service:	Available in most major harbours, world-wide through extensive dealer network

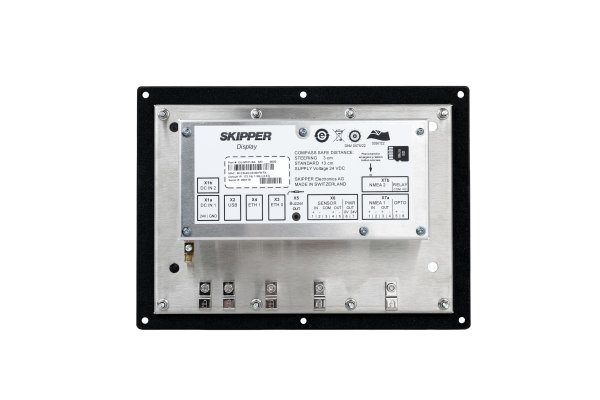

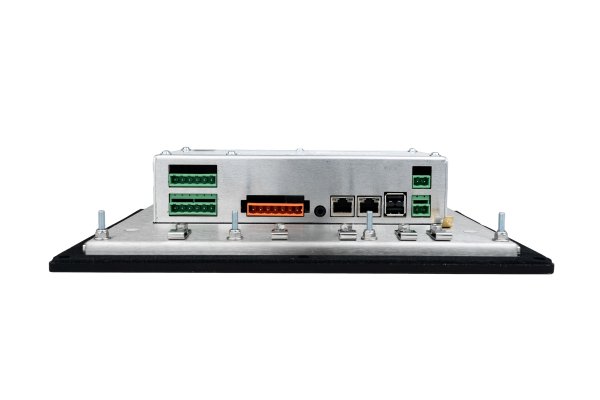

SKIPPER SL1200-SB touch display

Part Number: SL1200-SB

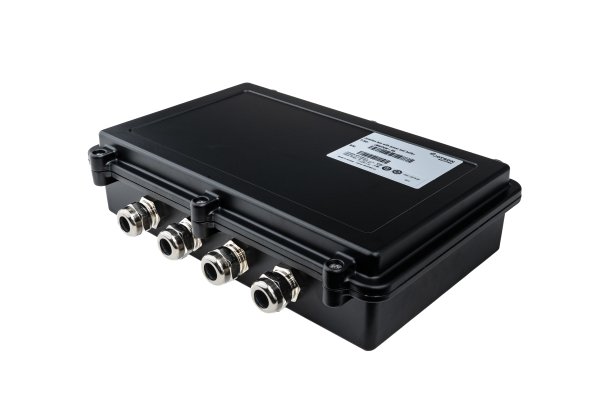

SKIPPER JB40POW-SA electronic unit

Part Number: JB40POW-SA

SKIPPER SL-SN300 SATLOG Antenna

Part Number: SL-SN300-SA

Documentation type

Date

Type

Name

Size

Download

29.06.26

Guide

Guide Speed Log Retrofit Setup and Options 144

308 KB

29.06.26

Guide

Guide Speed Log Setup and Options 144

521 KB

01.07.26

Manual

Manual SATLOG SL1200 (2021-03-04)

3158 KB

01.07.26

Marketing material

Product brochure Satlog SL1200

637 KB

20.08.26

Technical

Data bulletin_Jotron SKIPPER EOL Notification SATLOG

137 KB
