SKIPPER ETNST standard steel tank

Part Number: ETNST

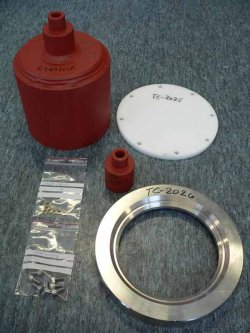

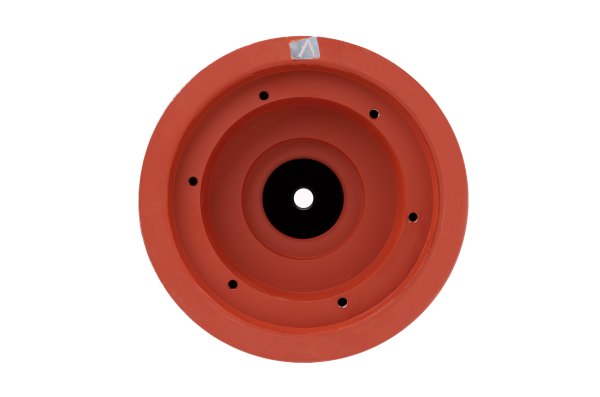

The ETNST is a standard steel tank. It is designed for SKIPPER transducers, but could also be used for other sensors with special adaptors.

Read product description

Where to buy

Features

Standard steel tank
DNV approval as standard
CCS available on request
Other approvals on request

Product:	Standard steel tank
Part number:	ETNST
Opening diameter:	100 mm
Hull type:	All steel hulls
Tank material:	Steel
Flange material:	N/A
Approval with part number:	ETNST Standard with DNV approval ETNST-ABS With ABS approval ETNST-BV With BV approval ETNST-LR With LR approval ETNST-RINA With RINA approval
Mandatory accessories:	A-PACKING Special packing materials
Weight:	35 kgs
Designed for:	ETN050T 50 kHz transducer with 25 m cable ETN050XT 50 kHz transducer with 40 m cable ETN200T 200 kHz transducer with 25 m cable ETN200XT 200 kHz transducer with 40 m cable ETN200ST 200 kHz transducer with 25 m cable ETN200SXT 200 kHz transducer with 40 m cable ETS50200T-SA 50/200 kHz dual transducer with 25 m cable ETS50200XT-SA 50/200 kHz dual transducer with 50 m cable
Service:	Available in most major harbours, world-wide through extensive dealer network

Date

Type

Name

Size

Download

10.07.26

Data sheet

Datasheet_ETNST Tank_2020-12-07

457 KB

29.06.26

Manual

Manual DM-BETNST-SA StandardTank 2017-12-20

857 KB

20.08.26

Technical

Data bulletin_SDB_TANK_01 Tool for packing nipple 20100608

555 KB

31.08.26

Technical

Illustrated parts list_Tanks (DOC1734531_rev02)

1255 KB

Software and certificates will soon be available for download in Jotron Product Passport. Until then, you can download them here: Certificates, Software.
