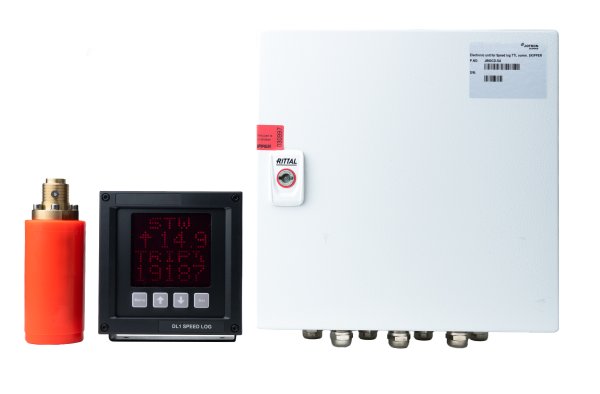

SKIPPER DL1 single axis speed log
Part Number: DL1
The SKIPPER DL1 is a single axis speed log, working on the Doppler principle, providing longitudinal ship’s speed (STW) and distance relative to sea water. The SKIPPER DL1 gives accurate navigation parameters, measured as they happen, and presented in a logical, user friendly way.
Features
- IMO Wheelmarked with MED-B
- Doppler water speed log in single axis (STW)
- Compact display 144x144 mm
- Sea temperature readout from sensor
- NMEA 0183 and Analog pulses output
- 3 userfriendly programmable displays and integrated menus
- Fully automatic settings
- CCS available on request
| Speed log | SKIPPER DL1 |
| Number of axis | 1 |
| Speed range longitudinal | +/- 50 knots |
| Water track (from) | 3 meter |
| Temperature accuracy error | <1°C |
| Primary frequency | 715 kHz |
| Power supply | • AC:115-230 V 50/60 Hz • DC: 20-32 V, auto switch over |
| Power consumption | Max 30 W |
| Display | 28x30 pixle alphanumeric LEDs (red) with dimming |
| Mounting dimensions display | 124x124 mm. Bracket or panel mounting |
| Front plate | 144x144 mm |
| Depth | 59 mm |
| Weight | 1 kgs |
| Standard cable length for sensor | 40 m |
| Mounting options | • 60 mm sea valve for single bottom • 60 mm sea valve for double bottom • Steel Tank • Aluminium tank • 100 mm sea valve for single bottom • 100 mm sea valve for double bottom • PCSV60 retrofit • Simrad NL retrofit • Sagem retrofit • Naviknot 5005 retrofit |
| Speed alarms | • High and low speed limits • Power failure • Sensor failure |
| Clock | Year-month-day/Hour-min. (taken from GPS if available) |
| Outputs | • 2 x NMEA 0183 • 2 x contact closure (pulse) • Alarm (relay) |
| Inputs | • 1 x NMEA 0183 (OPTO isolated) • External dimming (pulse) |
| NMEA outputs | • Speed: VBW and VHW • Distance: VLW • Others: MTW (Temperature) |
| Accessories | • ENIR300-SA Speed repeater • IR31DIM-SA Dimming control • CD401MR-SA Multi repeater |
| Classification | • IMO Wheelmarked • CCS on request • MED-B |
| IP rating | Electronic unit: 22 Display: 22 Sensor: IPX7 |
| Service | Available in most major harbours, world-wide through extensive dealer network |

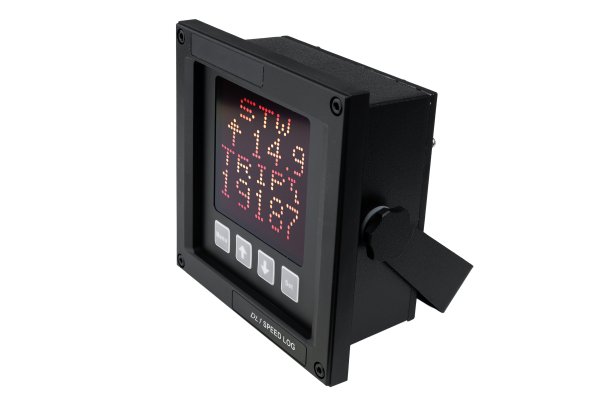

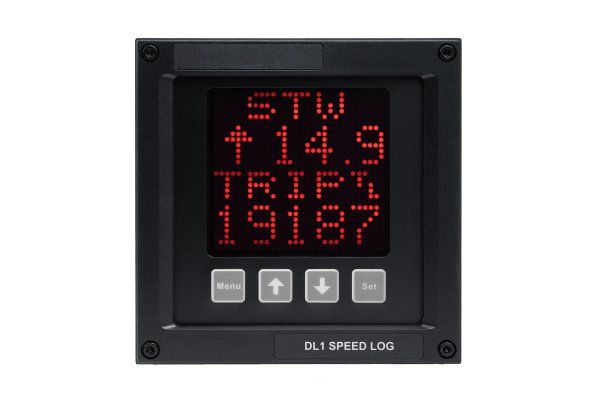

SKIPPER CD401D1-SB display and control unit for single axis option
Part Number: CD401D1-SB
SKIPPER JB60CD-SA electronic unit
Part Number: JB60CD-SA
SKIPPER DL1 single axis Doppler sensor
Part Number: Multiple options
SKIPPER SB-60-SA 60 mm ball valve single bottom
Part Number: SB-60-SA
SKIPPER DB-60-SA 60 mm ball valve double bottom
Part Number: DB-60-SA
SKIPPER ETNSTCL combo steel tank
Part Number: ETNSTCL
SKIPPER ETNALC aluminium tank
Part Number: ETNALC
