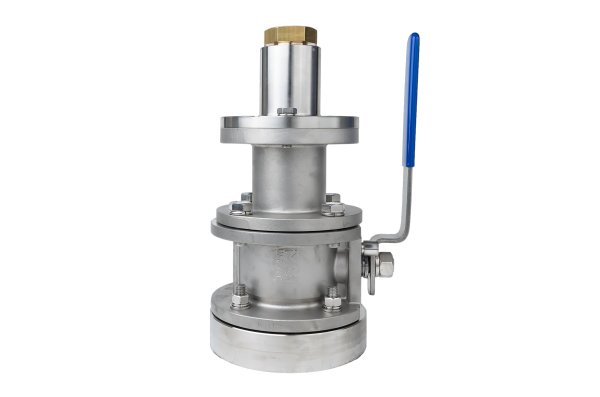

SKIPPER SB-60-SA 60 mm ball valve single bottom

Part Number: SB-60-SA

The SB-60-SA is a 60 mm sea valve with ball valve operation for single bottom arrangement. It is designed for SKIPPER sensors, but could also be used for other sensors with special adaptors.

Read product description

Where to buy

Features

60 mm sea valve
Single bottom arrangement
DNV approval as standard
CCS available on request
Other approvals on request

Product:	Ball valve
Part number:	SB-60-SA
Opening diameter:	60 mm
Hull type:	Single bottom
Valve material:	Stainless steel A4
Flange material:	Stainless steel A4
Approval with part number:	SB-60-SA Standard with DNV approval SB-60-SA-ABS With ABS approval SB-60-SA-BV With BV approval SB-60-SA-LR With LR approval
Mandatory accessories:	SB-60-SA-M-KIT Mounting kit
Weight:	35 kgs
Designed for:	EML224SG-SD Electromagnetic speed log sensor DL1SG-SA Single Axis Doppler speed log sensor
Service:	Available in most major harbours, world-wide through extensive dealer network

Date

Type

Name

Size

Download

13.07.26

Manual

Manual (OpIn) DM-BSB60-SA SB-60-SA

745 KB

20.08.26

Technical

Data bulletin_100mm sea valve threaded bolts 2024_02_14

476 KB

20.08.26

Technical

Data bulletin_Ice Guards

92 KB

09.10.26

Technical

Illustrated parts list_Sea Valves (DOC1735453_rev02)

6399 KB

Software and certificates will soon be available for download in Jotron Product Passport. Until then, you can download them here: Certificates, Software.
