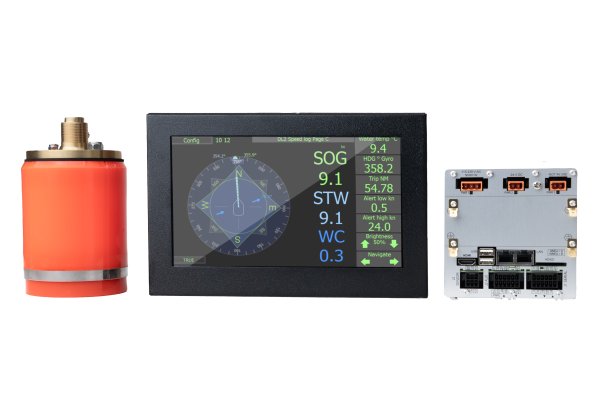

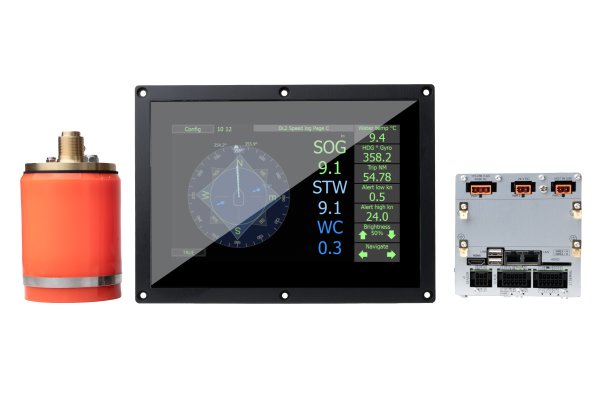

SKIPPER DL2 dual axis Doppler speed log
Part Number: DL2
The SKIPPER DL2 is a dual axis doppler speed log, working on the doppler principle, providing longitudinal and transversal ship’s speed (STW and SOG) and distance relative to sea water. The SKIPPER DL2 gives accurate navigation parameters, measured as they happen, and presented in a logical, user friendly way.
Features
- IMO Wheelmarked with MED-B
- Water speed log in dual axis (STW)
- Ground speed in dual axis (SOG)
- Docking functionality as standard (Three axis in STW and SOG)
- Sea temperature readout from sensor
- Touch display
- LAN and NMEA0183 output
- User friendly programmable displays and integrated menus
- Fully automatic settings
- CCS available on request
| Speed log | DL2 |
| Number of axis | 2 and 3 |
| Speed range longitudinal | +/- 50 knots |
| Speed range transversal | +/- 50 knots |
| Operating frequency | • 277 kHz SOG • 850-920 kHz STW primary • 264 kHz STW secondary |
| Trip total | 999999.9 NM |
| Water track (from) | 2 meter |
| Temperature accuracy error | <1°C |
| Power supply | • AC:115-230 V 50/60 Hz • DC: 24 V |
| Power consumption | Max 30 W for complete speed log |
| Display | 9" touch |
| Mounting dimensions display | 190x119x114 mm. Bracket or panel mounting |
| Accuracy (Better than) |
|
| Accuracy | 1% available as an option |
| Weight | • 1.4 kgs for display • 1.5 kgs for electronic unit • 10 kgs for sensor and 40 m cable |
| Standard cable length | • None (max 100 m) for display • 40 m for sensor |
| Mounting options | • Steel Tank |
| Speed alarms | • High and low speed limits • Power failure • Sensor failure |
| Clock | internal or From NMEA |
| Outputs | • 2 x LAN (IEC61162-450) • 4 x NMEA0183 (IEC61162-1) • 2 x Auxiliary (pulse, limit etc) • 1 x Relay (Alarm etc.) |
| Pulse output | Yes |
| Analogue output | Defalt no Optical 4-20 mA and 0-10V |
| Inputs | • 2 x LAN (IEC61162-450) • 2 x NMEA0183 (IEC61162-1) • 1 x Auxiliary (alarm, sync etc.) |
| NMEA outputs | • Speed: VBW and VHW • Distance: VLW • Others: MTW (Temperature) |
| Classification | • IMO Wheelmarked • CCS on request • MED-B • IEC61023 • IEC60945 • IEC61162-1/2/450 • IEC62288 • Ready for IEC61924 |
| IP rating | • IP 22 Control unit |
| Service | Available in most major harbours, world-wide through extensive dealer network |
SKIPPER DL2-SC touch display
Part Number: DL2-SC

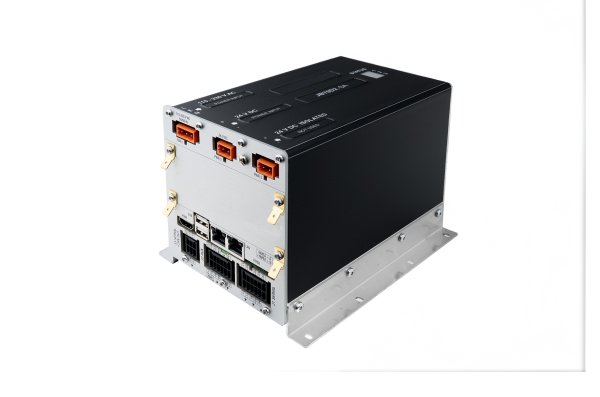

SKIPPER JB70D2-SA electronic unit with upgrade options
Part Number: JB70D2-SA

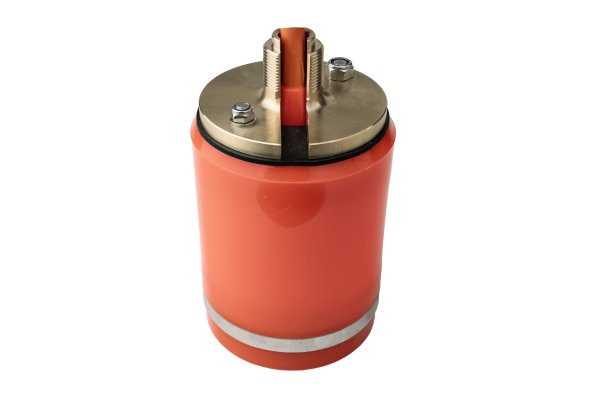

SKIPPER DL2 dual axis Doppler sensor
Part Number: Multiple options
SKIPPER SB-100-SB 100 mm ball valve for single bottom
Part Number: SB-100-SB
SKIPPER DB-100-SB 100 mm ball valve for double bottom
Part Number: DB-100-SB
SKIPPER ETNSTCL combo steel tank
Part Number: ETNSTCL
SKIPPER ETNALC aluminium tank
Part Number: ETNALC
SKIPPER CD401MR multirepeater
Part Number: CD401MR

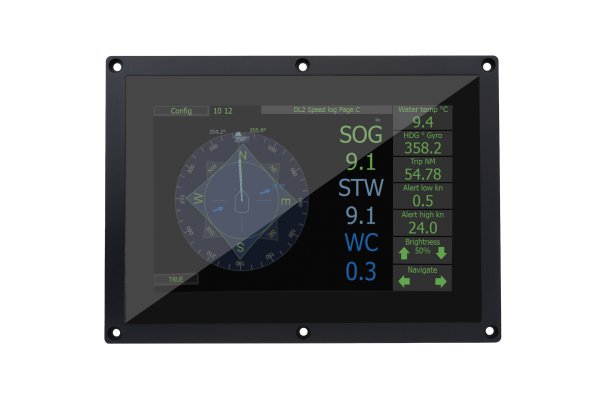

SKIPPER CU-M001-SB touch display
