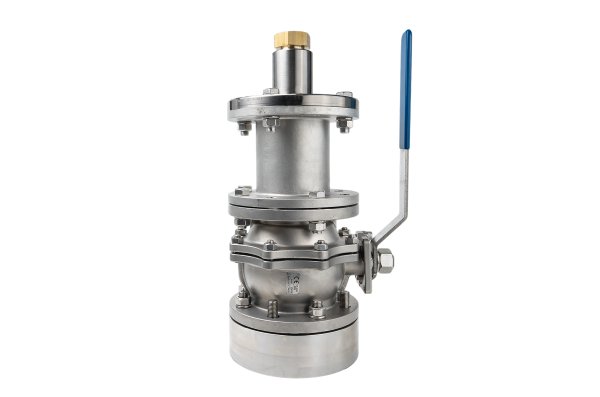

SKIPPER SB-100-SB 100 mm ball valve for single bottom

Part Number: SB-100-SB

The SB-100-SB is a 100 mm sea valve with ball valve operation for single bottom arrangement. It is designed for SKIPPER sensors, but could also be used for other sensors with special adaptors.

Read product description

Where to buy

Features

100 mm sea valve
Single bottom arrangement
DNV approval as standard
CCS available on request
Other approvals on request

Product:	Ball valve
Part number:	SB-100-SB
Opening diameter:	100 mm
Hull type:	Single bottom
Valve material:	Stainless steel A4
Flange material:	Stainless steel A4
Approval with part number:	SB-100-SB Standard with DNV approval SB-100-SB-ABS With ABS approval SB-100-SB-BV With BV approval SB-100-SB-LR With LR approval SB-100-SB-RINA With RINA approval
Mandatory accessories:	SB-100-SB-M-KIT Mounting kit A-PACKING Special packing materials
Weight:	70 kgs
Designed for:	EML224SDB-SD Electromagnetic speed log sensor DL2SG-SA Dual axis Doppler speed log sensor DL1SDB-SA Single axis Doppler speed log sensor DL850S27G-SB Dual axis Doppler speed log sensor ETN050G 50 kHz Transducer with 25 m cable ETN050XG 50 kHz Transducer with 40 m cable ETN200SG 200 kHz Transducer with 25 m cable ETN200SXG 200 kHz Transducer with 40 m cable ETS50200G-SA 50/200 kHz Dual transducer with 25 m cable ETS50200XG-SA 50/200 kHz Dual transducer with 40 m cable
Service:	Available in most major harbours, world-wide through extensive dealer network

Date

Type

Name

Size

Download

28.08.26

Manual

Manual (OpIn) SB-100 (DM-BSB100 rev02)

5138 KB

20.08.26

Technical

Data bulletin_100mm sea valve threaded bolts 2024_02_14

476 KB

20.08.26

Technical

Data bulletin_Ice Guards

92 KB

09.10.26

Technical

Illustrated parts list_Sea Valves (DOC1735453_rev02)

6399 KB

Software and certificates will soon be available for download in Jotron Product Passport. Until then, you can download them here: Certificates, Software.
