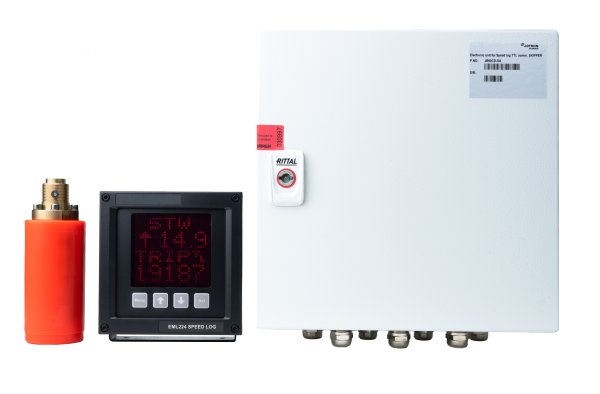

SKIPPER EML224 compact speed log

Number of axis:

Speed range longitudinal:

+/- 40 knots

+/- 40 knots

Speed range transversal:

N/A

+/- 40 knots

Water track (from):

0 meter

Temperature accuracy error:

Power supply:

DC: 20-32 V, auto switch over

DC: 20-32 V, auto switch over

Power consumption:

Max 30 W

Max 30 W

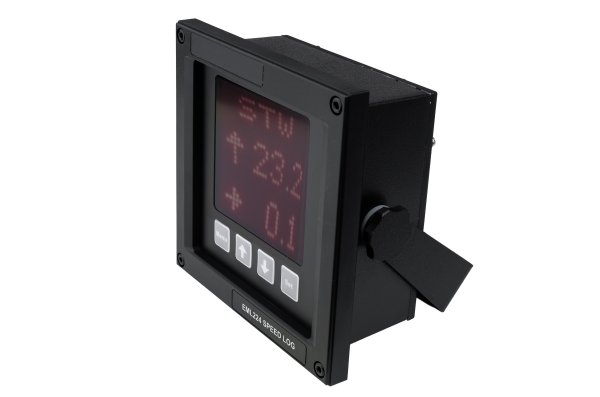

Display:

Mounting dimensions display:

124x124 mm. Bracket or panel mounting

124x124 mm. bracket or panel mounting

Front plate:

144x144 mm

144x144 mm

Depth:

59 mm

59 mm

Weight:

1 kgs

1 kgs

Standard cable length:

10 m (max 20 m)

10 m (max 20 m)

Mounting options:

• 60 mm sea valve for single bottom
• 60 mm sea valve for double bottom
• Steel Tank
• Aluminium tank
• 100 mm sea valve for single bottom
• 100 mm sea valve for double bottom
• Simrad NL-log retrofit
• Sagem/Safran retrofit
• Naviknot SRD331 retrofit
• PCSV60 retrofit

Speed alarms:

• High and low speed limits
• Power failure
• Sensor failure

Outputs:

• 2xNMEA 0183
• 1xcontact closure (pulse)
• Alarm (relay)
• Fitness

Inputs:

• 1xNMEA 0183 (OPTO isolated)
• External dimming (pulse)

NMEA outputs:

• Speed: VBW and VHW
• Distance: VLW
• Others: MTW (Temperature)

Classification:

• IMO Wheelmarked
• CCS on request
• MED-B

Service:

Available in most major harbours, world-wide through extensive dealer network
