  • DL1SG-SA sensor is a single axis Doppler sensor designed for the SKIPPER DL1 speed log system.
  • The JB60CD-SA is a robust electronic unit designed for SKIPPER speed log TTL communication systems.

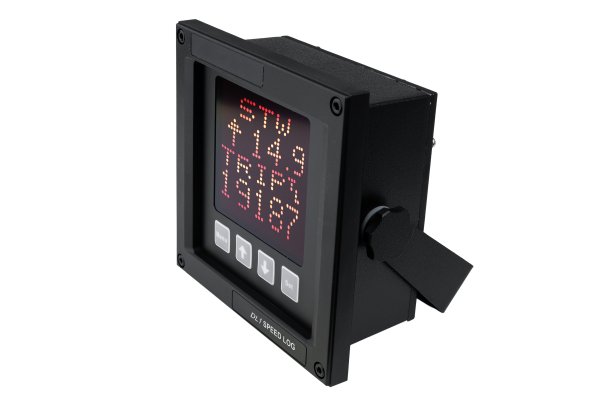

  • CD401D1-SB is a reliable display and control unit designed for use with SKIPPER navigation systems.

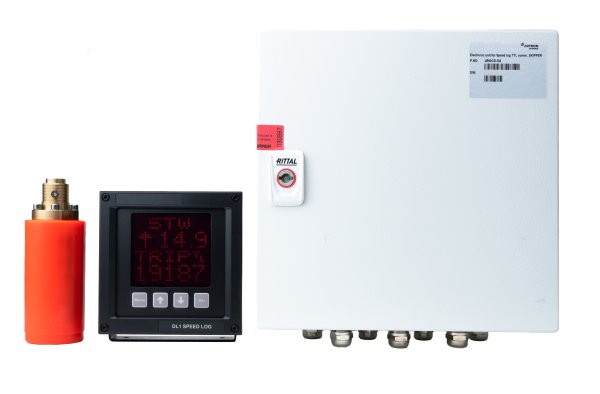

SKIPPER DL1 single axis speed log

Part Number: DL1

The SKIPPER DL1 is a single axis speed log, working on the Doppler principle, providing longitudinal ship’s speed (STW) and distance relative to sea water. The SKIPPER DL1 gives accurate navigation parameters, measured as they happen, and presented in a logical, user friendly way.

Read product description
Where to buy

Features

  • IMO Wheelmarked with MED-B
  • Doppler water speed log in single axis (STW)
  • Compact display 144x144 mm
  • Sea temperature readout from sensor
  • NMEA 0183 and Analog pulses output
  • 3 userfriendly programmable displays and integrated menus
  • Fully automatic settings
  • CCS available on request
Speed logSKIPPER DL1
Number of axis1
Speed range longitudinal+/- 50 knots
Water track (from)3 meter
Temperature accuracy error<1°C
Primary frequency715 kHz
Power supply• AC:115-230 V 50/60 Hz
• DC: 20-32 V, auto switch over
Power consumptionMax 30 W
Display28x30 pixle alphanumeric LEDs (red) with dimming
Mounting dimensions display124x124 mm. Bracket or panel mounting
Front plate144x144 mm
Depth59 mm
Weight1 kgs
Standard cable length for sensor40 m
Mounting options• 60 mm sea valve for single bottom
• 60 mm sea valve for double bottom
• Steel Tank
• Aluminium tank
• 100 mm sea valve for single bottom
• 100 mm sea valve for double bottom
• PCSV60 retrofit
• Simrad NL retrofit
• Sagem retrofit
• Naviknot 5005 retrofit
Speed alarms• High and low speed limits
• Power failure
• Sensor failure
ClockYear-month-day/Hour-min. (taken from GPS if available)
Outputs• 2 x NMEA 0183
• 2 x contact closure (pulse)
• Alarm (relay)
Inputs• 1 x NMEA 0183 (OPTO isolated)
• External dimming (pulse)
NMEA outputs• Speed: VBW and VHW
• Distance: VLW
• Others: MTW (Temperature)
Accessories• ENIR300-SA Speed repeater
• IR31DIM-SA Dimming control
• CD401MR-SA Multi repeater
Classification• IMO Wheelmarked
• CCS on request
• MED-B
IP ratingElectronic unit: 22 Display: 22 Sensor: IPX7
ServiceAvailable in most major harbours, world-wide through extensive dealer network
