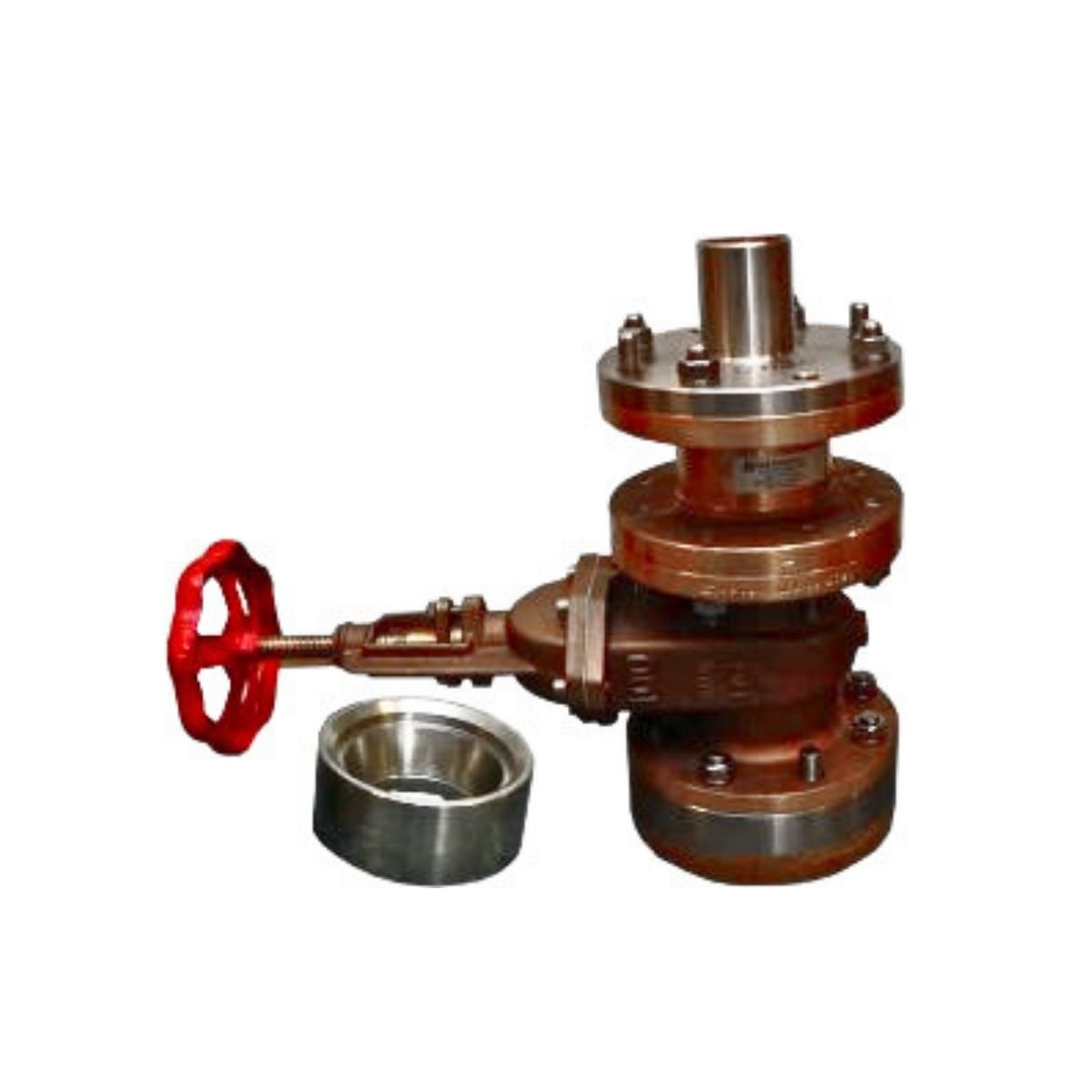

SKIPPER DB-100-SA 100 mm gate valve for double bottom

Part Number: DB-100-SA

The DB-100-SA is a 100 mm sea valve with gate valve operation for double bottom arrangement. It is designed for SKIPPER sensors, but could also be used for other sensors with special adaptors.

Read product description

Where to buy

Features

100 mm sea valve
Double bottom arrangement
DNV approval as standard
CCS available on request
Other approvals on request

Product:	Gate valve
Part number:	DB-100-SA
Opening diameter:	100 mm
Hull type:	Double bottom
Valve material:	Brass
Flange material:	Stainless steel A4
Approval with part number:	DB-100-SA Standard with DNV approval DB-100-SA-ABS With ABS approval DB-100-SA-BV With BV approval DB-100-SA-LR With LR approval
Mandatory accessories:	DB-100-SA-M-KIT Mounting kit A-PACKING Special packing materials
Weight:	86 kgs
Designed for:	EML224SDB-SD Electromagnetic speed log sensor DL2SG-SA Dual Axis Doppler speed log sensor DL1SDB-SA Single axis Doppler speed log sensor DL850S27G-SB Dual axis Doppler speed log sensor ETN050G 50 kHz Transducer with 25 m cable ETN050XG 50 kHz Transducer with 40 m cable ETN200SG 200 kHz Transducer with 25 m cable ETN200SXG 200 kHz Transducer with 40 m cable ETS50200G-SA 50/200 kHz Dual transducer with 25 m cable ETS50200XG-SA 50/200 kHz Dual transducer with 40 m cable
Service:	Available in most major harbours, world-wide through extensive dealer network

Documentation type

Date

Type

Name

Size

Download

13.07.26

Manual

Manual DB-100-Man-2020-03-25

3242 KB

20.08.26

Technical

Data bulletin_100mm sea valve threaded bolts 2024_02_14

476 KB

20.08.26

Technical

Data bulletin_Ice Guards

92 KB

20.08.26

Technical

Illustrated parts list_Sea Valves (DOC1735453_rev01)

5785 KB

Software and certificates will soon be available for download in Jotron Product Passport. Until then, you can download them here: Certificates, Software.
