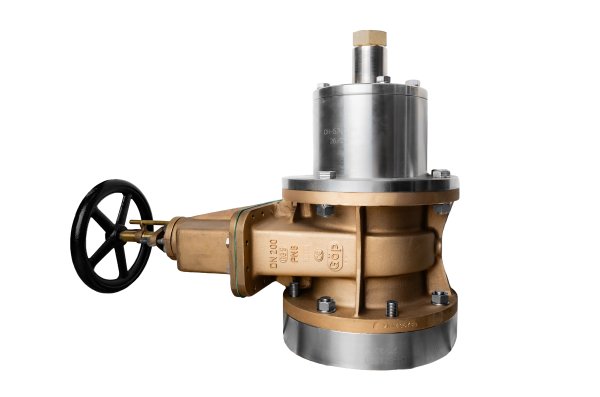

SKIPPER SB-200-ECHO 200 mm gate valve for single bottom
Part Number: SB-200-ECHO
The SB-200-ECHO is a 200 mm sea valve with gate valve operation for single bottom arrangement. It is designed for SKIPPER sensors, but could also be used for other sensors with special adaptors.
Features
- 200 mm sea valve
- Single bottom arrangement
- DNV approval as standard
- CCS available on request
- Other approvals on request
| Product: | Gate valve |
| Part number: | SB-200-ECHO |
| Opening Diameter: | 200 mm |
| Hull type: | Single bottom |
| Valve material: | Brass |
| Flange material: | Stainless steel A4 |
| Approval with part number: |
|
| Mandatory Accessories: |
|
| Weight: | 150 kgs |
| Designed for: |
|
| Service: | Available in most major harbours, world-wide through extensive dealer network |
Documentation type
Date
Type
Name
Size
Download
29.06.26
Manual
Manual (OpIn) DM-BSB-200-SB SB-200-SA Rev 1003A OpIn 20101020
862 KB
20.08.26
Technical
Data bulletin_100mm sea valve threaded bolts 2024_02_14
476 KB
20.08.26
Technical
Data bulletin_Ice Guards
92 KB
20.08.26
Technical
Illustrated parts list_Sea Valves (DOC1735453_rev01)
5785 KB
Software and certificates will soon be available for download in Jotron Product Passport. Until then, you can download them here: Certificates, Software.
