SKIPPER ESN200 IMO wheelmarked echo sounder

Part Number: ESN200

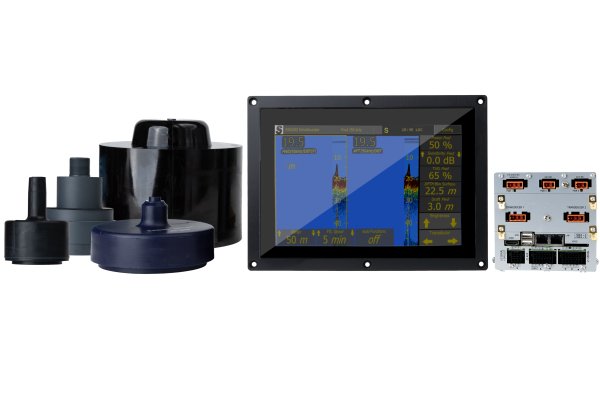

The SKIPPER ESN200 is a navigation echo sounder with a black box and a 10.1" touch display. The echo sounder graphics are continuously shown on the screen along with complete navigational details. Most of the functions are automatic. The SKIPPER ESN200 is a dual frequency echo sounder.

Read product description

Where to buy

Features

IMO wheelmarked with MED-B
Navigation echo sounder
Dual frequency
Colour 10.1" touch screen
Auto/Manual gain
Auto/Manual TVG
Auto/Manual range
Auto/Manual power
INS and IBS ready
CCS available on request

Echo sounder	ESN200
Functions:	Auto/Manual TVG Auto/Manual gain Auto/Manual power Auto/Manual range Transducer positioning Internal sounder for alarm/button press
Power supply:	DC: 20-32 V AC: 115/230 V
Power Consumption:	Display unit 5W Electronic unit 10W
Display:	10.1" Touch Display
Mounting Dimensions:	224.5 mm wide x 140 mm high (Cut-out) 242 mm wide x 158 mm high (Outside dimensions)
Memory:	24 hours history, external logging feature over network
Ranges:	Selectable from 0-5 m Selectable from 0-5000 m
Measuring accuracy:	Error less than 1 %
Frequencies:	Approved frequencies: 50/200 kHz, 200 kHz 50 kHz and 38 kHz Other frequencies covered: 24, 30, 33, 100 and 210 kHz
Output power:	Nominal 700 W Max> 1000 W
Alarms:	BAM compatible (IEC62923) (ALF and ALR) Internal sounder Relay output and AUX in/out
Calendar/clock:	From GPS input
Data output:	2xLAN (IEC61192-1) control unit 5xNMEA0183 (IEC61162-1) control unit 2xAUX control unit 1xRelay control unit 3xNMEA0183 display unit 1xLAN display unit DPT, PSKDPT, DBS, DBK, ALR and ALF
Inputs:	3xNMEA0183(IEC61162-1) control unit 1xAUX control unit 2xNMEA0183 Inputs (IEC61192-1) display 1xLAN display Accepting signals from GPS, gyro, alarm and draft sensor
Language:	English
Option:	Remote depth indicators 24 kHz transducer 38 kHz transducer 50 kHz transducer 200 kHz transducer Dual 50/200 kHz transducer Retrofit plate for GDS101/GDS102 Remote dimmer
Printer:	Epson LQ-350 Review: service software via LAN Extended internal logging by USB or SD
Classification:	IMO wheelmarked MED-B CCS
Service:	Available in most major harbours, world-wide through extensive dealer network

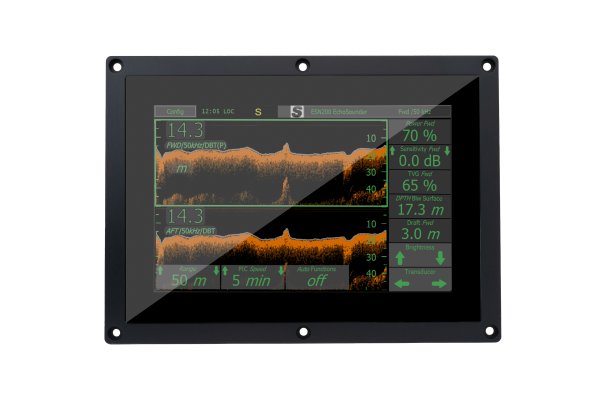

CU-M101-SA_10" touchscreen for maritime navigation

SKIPPER ESN200-SC touch display

Part Number: ESN200-SC

SKIPPER ESN echo sounder transceiver unit for signal processing and depth measurement.

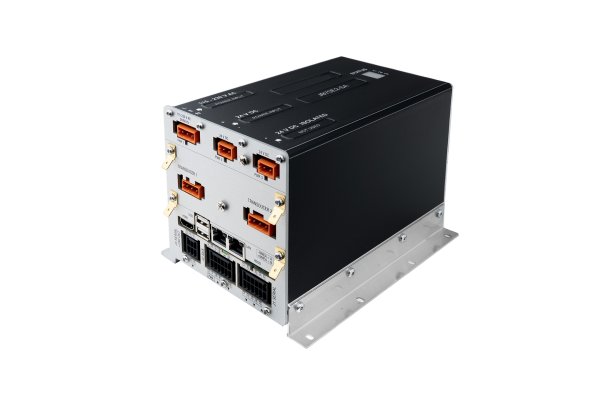

SKIPPER JB70E2-SA transciever unit

Part Number: JB70E2-SA

SKIPPER 24 kHz transducers

Part Number: Multiple options

ETN038T - 38 kHz transducer for echo sounders

SKIPPER 38 kHz transducer

Part Number: Multiple options

SKIPPER ETN050G 50 kHz transducer for 100 mm sea valves

SKIPPER 50 kHz transducer

Part Number: Multiple options

SKIPPER 200 kHz transducer

Part Number: Multiple options

SKIPPER dual-frequency echo sounder transducer for reliable depth measurement.

SKIPPER 50/200 kHz dual transducer

Part Number: Multiple options

SKIPPER SB-100-SB sea valve designed for transducer and sensor installations.

SKIPPER SB-100-SB 100 mm ball valve for single bottom

Part Number: SB-100-SB

SKIPPER DB-100-SB 100 mm ball valve assembly for marine sensor mounting.

SKIPPER DB-100-SB 100 mm ball valve for double bottom

Part Number: DB-100-SB

SKIPPER SB-200-ECHO sea valve for secure installation of sensors in single-bottom tanks.

SKIPPER SB-200-ECHO 200 mm gate valve for single bottom

Part Number: SB-200-ECHO

The ETNSTC is a combo steel tank designed for SKIPPER echo sounders.

SKIPPER ETNST standard steel tank

Part Number: ETNST

The ETNALC is an aluminium combo tank designed for SKIPPER sensors.

SKIPPER ETNALC aluminium tank

Part Number: ETNALC

SKIPPER ETNSTCI ice protected combo tank

Part Number: ETNSTCI

SKIPPER ETNSTCLF transducer tank for low-frequency echo sounder installations.

SKIPPER ETNSTCLF low frequency combo tank

Part Number: ETNSTCLF

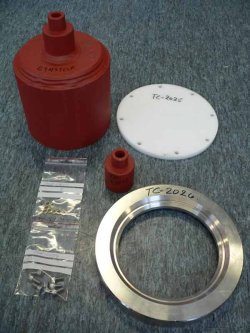

SKIPPER ETNSTCILF ice protected low frequency combo tank

Part Number: ETNSTCILF

SKIPPER ETNSTC combo steel tank

Part Number: ETNSTC

Compact SKIPPER junction box for reliable transducer signal connections.

SKIPPER ZZL-01019 junction box for echo sounder transducers

Part Number: ZZL-01019

Date

Type

Name

Size

Download

29.06.26

Data sheet

Datasheet MTBF DL1 DL2 EML224 ESN100 ESN200 EML1200 EML1100 Skipper

27 KB

27.08.26

Dismantling and recycling

Disposal JB70XX

343 KB

28.08.26

Dismantling and recycling

Disposal SKIPPER Displays

429 KB

30.08.26

Dismantling and recycling

Disposal SKIPPER Sensors

288 KB

29.06.26

Guide

Guide Echo Sounder setup and options 144

535 KB

26.06.26

Manual

ESN200 Operation and Installation manual (DM-G005-SB-2620)

8227 KB

23.09.26

Marketing material

Product brochure_ESN200 Navigation Echo Sounder (2026-09)

441 KB

28.08.26

Marketing material

Type Approval (CCS) - ESN200 (2026-05-18) - CCS (BG26PTB00003_02) Expiry 2031-01-25

422 KB

28.08.26

Marketing material

Type Approval (MED-B) - ESN200 (2025-03-21) - BV (54746-C0 MED) - Expiry (2027-09-04)

592 KB

28.08.26

Marketing material

Type Approval (MER-B) - ESN200 (2024-02-24) - BV (75356-B0 UK) - Expiry (2030-02-24)

282 KB

20.08.26

Technical

Data bulletin_ESN100_200 REMOTE Access Rev April 2022

665 KB

20.08.26

Technical

Data bulletin_Logging to USB on ESN200

246 KB

29.06.26

Technical bulletin

Data bulletin_ESN200 upgrade 2025

171 KB

Software and certificates will soon be available for download in Jotron Product Passport. Until then, you can download them here: Certificates, Software.
